DIVING EQUIPMENTS
Diving Fittings and Valves
JK Subsea Engineering Pvt. Ltd. is a trusted diving fittings and valves manufacturer and supplier, providing high-quality, high-pressure components for the commercial diving industry, and we specialize in fittings and valves used in demanding equipment such as diver air panels, decompression chambers, and machinery containers. Our diving fittings and valves are DNV approved and built to handle pressures up to 350 Bar, making them suitable for critical diving life support and air supply systems, with every fitting and valve manufactured in brass or stainless steel to match different pressure, corrosion resistance, and application requirements.
Key Features of Diving Fittings & Valves
Our diving fittings and valves are engineered for safety, durability, and reliable performance in high-pressure diving systems.
01. DNV Approved Construction: Every fitting and valve is approved by DNV, giving confidence in quality and safety for critical diving applications.
02. High Pressure Rated: Our valves and fittings are tested and used at pressures up to 350 Bar, suitable for demanding diving and gas systems.
03. High Pressure Rated: Our valves and fittings are tested and used at pressures up to 350 Bar, suitable for demanding diving and gas systems.

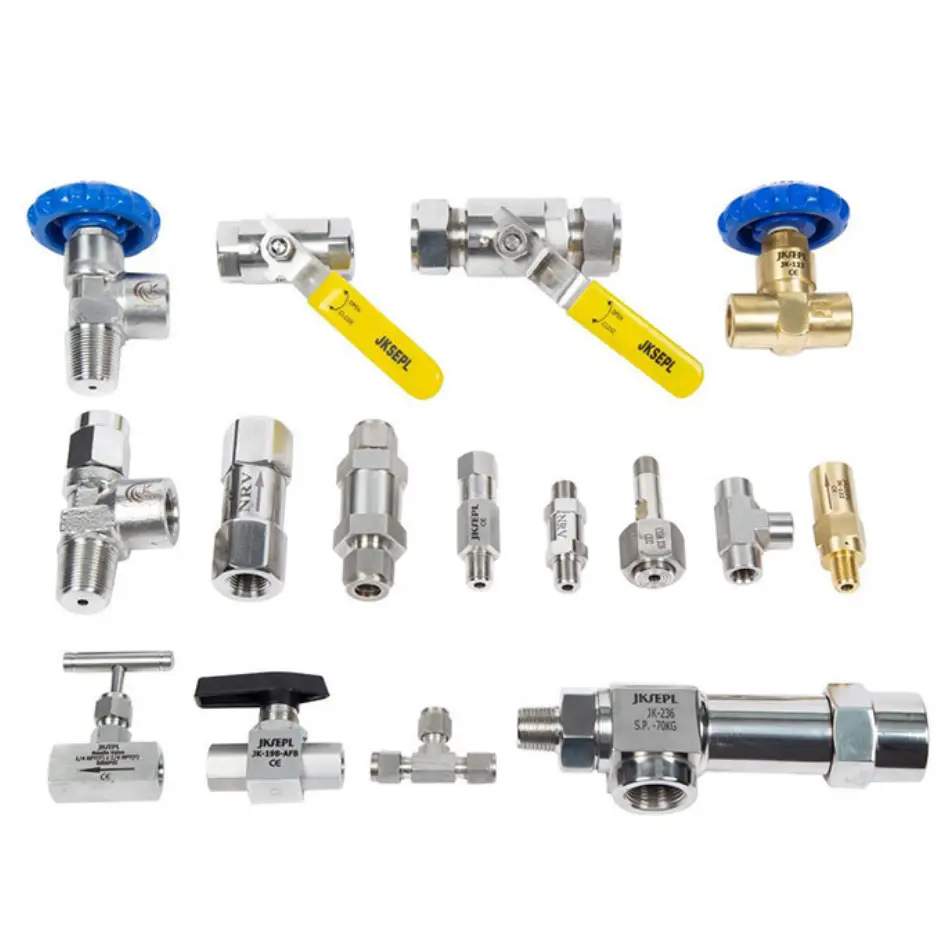

04. Wide Fitting Range: Elbows, tees, connectors, adaptors, crosses, nuts, blanks, ferrules, noise reducers, and quick release couplings cover most diving system configurations.
05. Specialized Valve Range: Ball valves, needle valves, panel mount ball valves, shutoff valves, cryogenic globe valves, safety relief valves, non-return valves, and cylinder valves support a wide range of diving equipment.
06. IMCA-Compliant Design: Fittings and valves are designed following IMCA D018, D023, D037, and D040 guidelines for diving plant and surface-supplied systems.
07. Documented Technical Data: Each valve and fitting comes with its own technical data sheet, available in the Gas Industry section of our product page.
Applications of Diving Fittings & Valves
Our diving fittings and valves are used across a wide range of commercial diving and high-pressure gas system applications.
Diver Air Panels: Fittings and valves connect and control breathing air supply lines within diver air panels.
Decompression Chambers: High-pressure valves and fittings manage air and gas flow inside decompression chamber systems.
Machinery Containers: Fittings and valves support piping and pressure control inside machinery container equipment.
Scuba Replacement Packages: Ball valves, needle valves, and connectors are used throughout SRP cylinder and panel assemblies.
Gas Manifolds & Cylinder Systems: Cylinder valves and non-return valves control gas flow and prevent backflow in cylinder banks.
Cryogenic & Gas Industry Equipment: Cryogenic globe valves and Dura cryogenic valves support low-temperature gas handling systems.
Hydraulic & Pneumatic Piping: Elbows, tees, adaptors, and couplings are used throughout diving and offshore hydraulic piping systems.
Technical Specifications of Diving Fittings & Valves
Our diving fittings and valves are designed to IMCA D018, D023, D037, and D040 guidelines, DNV approved; and rated for use up to 350 Bar.
A detailed technical data sheet for each valve and fitting is available in the Gas Industry section of our product page.
| Product | Part Number |
|---|---|
| Fittings Range | |
| Elbow | Brass JK 202-B / SS JK 202-S |
| Tee | Brass JK 201-B / SS JK 201-S |
| Connector | Brass JK 205-B / SS JK 205-S |
| Adaptor | Brass JK 199-B / SS JK 199-S |
| Cross | Brass JK 207-B / SS JK 207-S |
| Nut | Brass JK 204-B / SS JK 204-S |
| Blank | Brass JK 203-B / SS JK 203-S |
| Ferrule | SS JK 206-S |
| Noise Reducer | JK 209 |
| Quick Release Coupling | JK 137 |
| Valve Range | |
| Ball Valve | Brass JK-195 |
| Needle Valve | Brass JK-200 / SS JK-254 |
| Panel Mount Ball Valve | SS JK-198 |
| Shutoff Valve | Brass JK-193 |
| Cryogenic Globe Valve | SS JK-134 |
| Dura Cryogenic Valve | Brass JK-133 |
| Dura Safety Relief Valve | Brass JK-132 |
| Safety Relief Valve | SS JK-236 |
| High Pressure SRV | Brass JK-194 |
| Non Return Valve | Brass JK-251 / SS JK-250 |
| Cylinder Valve SS | RH JK-252 / LH JK-253 |
Certifications & Standards for Diving Fittings & Valves Manufacturer
Our diving fittings and valves are designed and manufactured to meet internationally recognized commercial diving standards. This includes IMCA D018 for the examination, testing, and certification of diving plant and systems, IMCA D023 for surface-oriented air systems, IMCA D037 for surface-oriented mixed gas diving systems, and IMCA D040 for mobile and portable surface-supplied systems. Our fittings and valves are also DNV approved.
IMCA D018
Certified
IMCA D023
Certified
IMCA D037
Certified
IMCA D040
Certified
DNV
Approved
Why Choose JK Subsea Engineering as Your Diving Fittings & Valves Manufacturer
JK Subsea Engineering Pvt. Ltd. is a trusted diving fittings and valves manufacturer and supplier. Choosing the right fittings and valves manufacturer matters, since diving life support and air supply systems depend on components that hold pressure reliably without failure.
20+ Years of Experience: Over 20+ years of experience as a diving fittings and valves manufacturer.
Trusted High Pressure Supplier: A trusted high pressure fittings supplier for diving and gas industry equipment.
DNV Approved Range: DNV approved valves and fittings rated up to 350 Bar.
Material Flexibility: Wide range of brass and stainless steel fittings and valves.
IMCA Compliant Design: Built to IMCA D018, D023, D037, and D040 compliant standards.
Documented Quality: Individual technical data sheets available for every fitting and valve.
Strong After-Sales Support: Ongoing technical support for clients worldwide.
If you’re looking to buy diving fittings and valves or need pricing details, contact JK Subsea Engineering Pvt. Ltd. today for technical guidance and a detailed quote.
