DIVING EQUIPMENTS
Machinery Container 20ft & 10ft

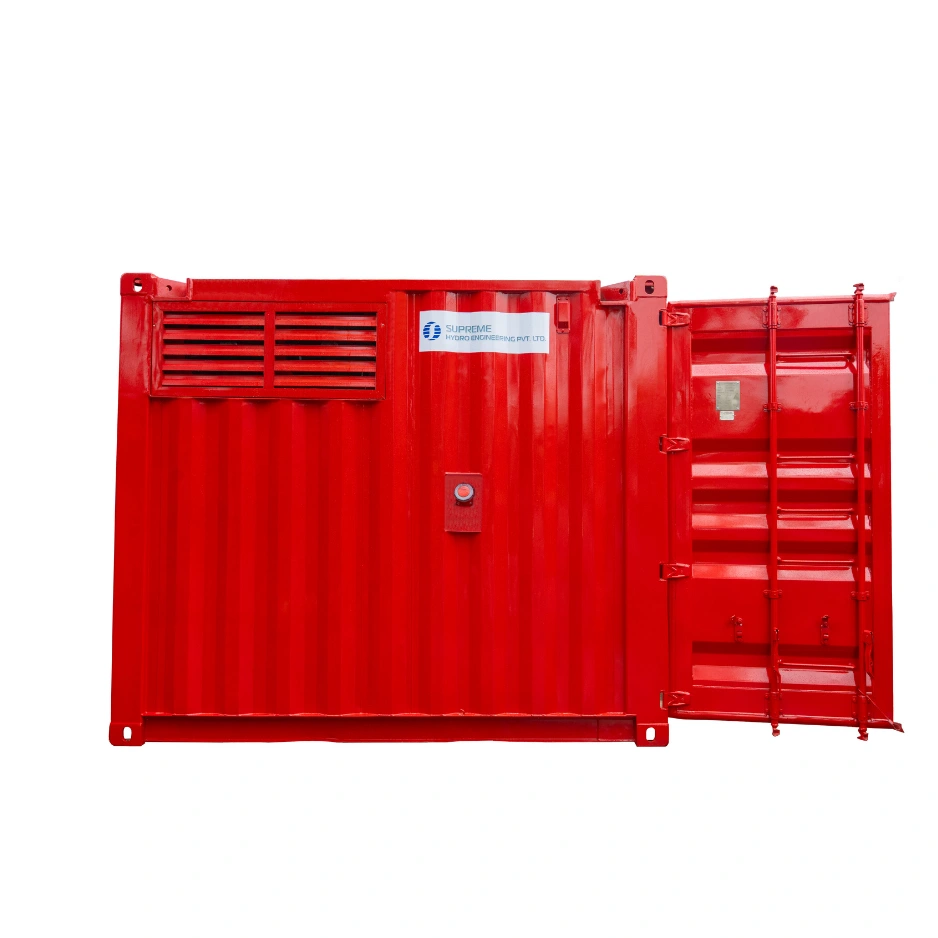

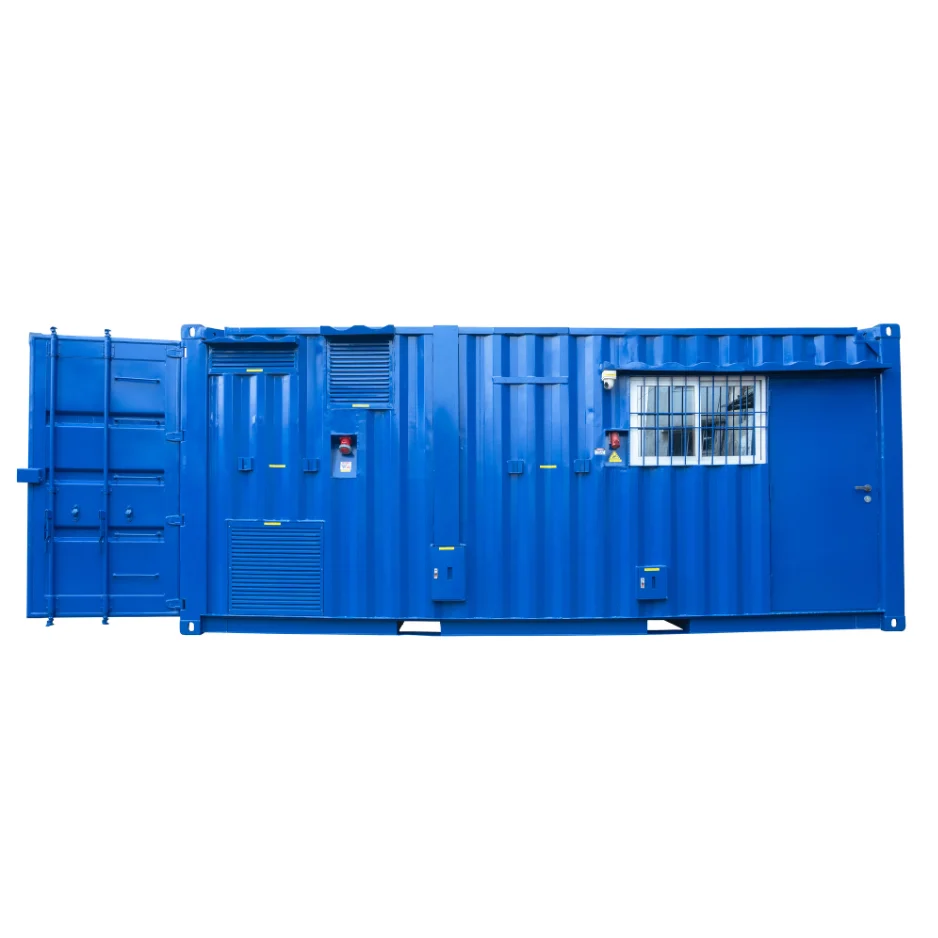

Every commercial diving operation needs a machinery room it can rely on, and that is exactly what the Machinery Container from JK Subsea Engineering Pvt. Ltd. delivers. As an experienced Machinery Container manufacturer and supplier, we design, manufacture and supply this self contained diving support container in line with IMCA D018 and D023 guidelines, offered in 20ft and 10ft Standard ISO Shipping Container format, CSC and TIR approved. Inside, it brings together everything a diving spread depends on, LP and HP breathing air compressors, a breathing air filter, a breathing air cylinder quad, a pressure reservoir tank and a hydraulic power unit, all housed in one weatherproof enclosure. The 20ft Machinery Container splits its interior into a dedicated Machinery Part and a Supervision Cabin for the dive team, while the 10ft Machinery Container, listed as Model No. JK1MC, keeps the full space for machinery, giving contractors a lighter, equally dependable option. As a dedicated diving support container and containerized breathing air system supplier, JK Subsea Engineering Pvt. Ltd. manufactures and supplies Machinery Containers for commercial diving contractors, offshore support vessels and subsea construction projects.
What's Included in the Machinery Container

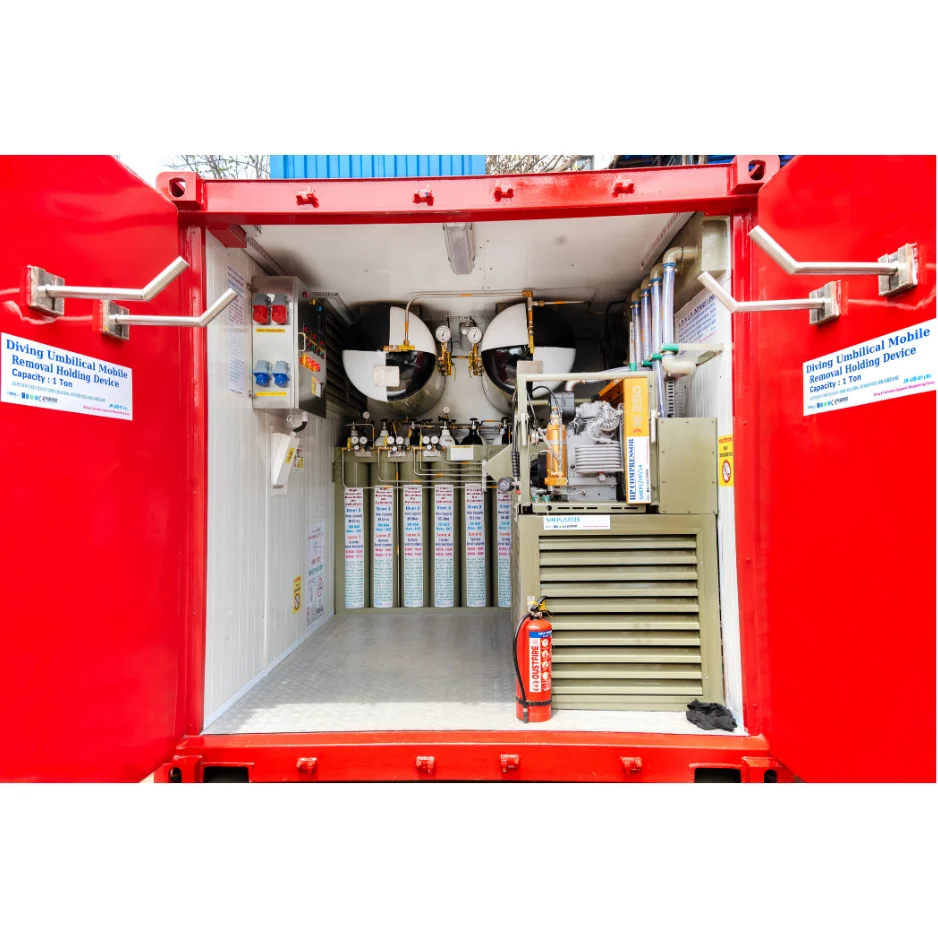

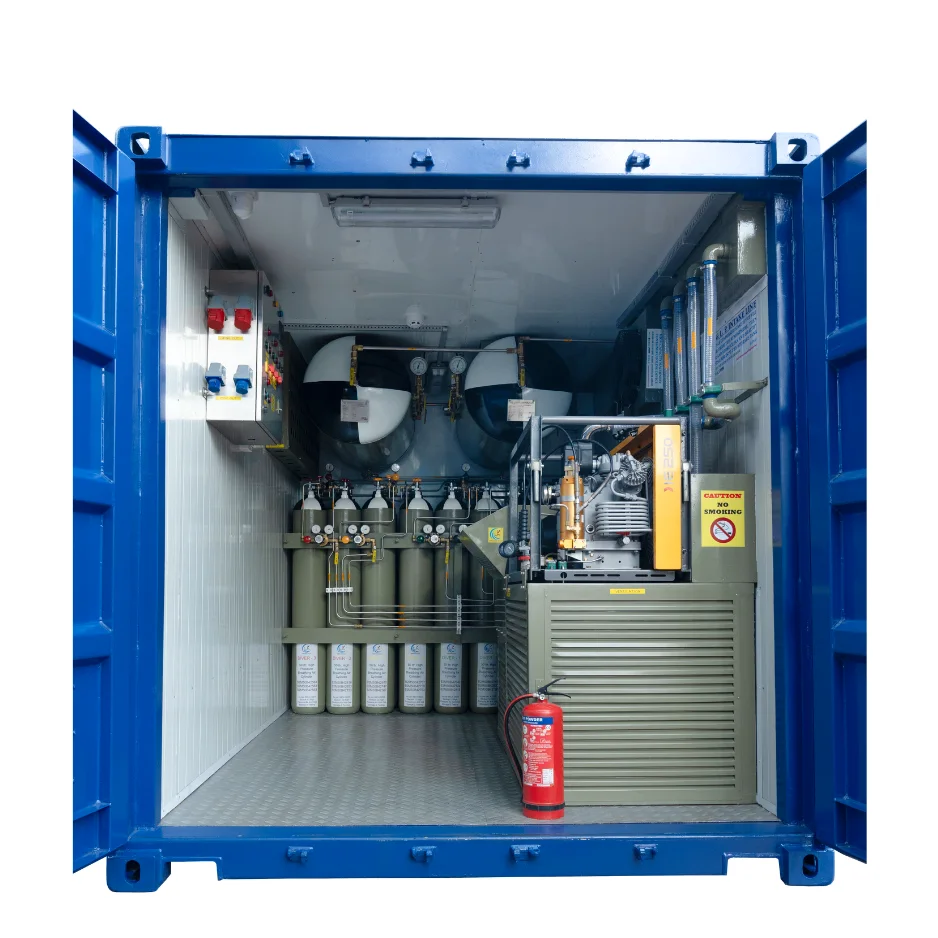

Our Machinery Container is a complete containerized machinery package, packed with the equipment a diving spread needs in one enclosure.
- LP Breathing Air Compressor: Ingersoll Rand 15T and 15TNLX, supplying low pressure breathing air to the diving panel and recompression chamber.
- HP Breathing Air Compressor: Bauer Mariner Series unit with corrosion resistant crash frame and Bauer P31 purification system, charging breathing air cylinders up to 420 Bar.
- Diving Breathing Air Filter: 3 stage brass manifold filter for the low pressure compressor with 6 outlet connections for diving panel, recompression chamber and emergency backup use.
- Breathing Air Cylinder Quad: 18 cylinder bank (9 plus 9), 200 Bar x 50 litres each, feeding the diving panel and recompression or air decompression chamber.
- Pressure Reservoir Tank: Stainless Steel (SS316L) reservoir tanks connected in series and ceiling mounted, supplying breathing air to the diving panel and recompression chamber.
- Hydraulic Power Unit with Panel: Open frame electric HPU with starter panel, supplying hydraulic power to underwater tools and actuators.
- Umbilical Frame: Stainless Steel 316 removable hooks fitted to the container door, holding up to 150 metres of 4 core diving umbilical with equal weight distribution.
Key Features of Machinery Container
Our Machinery Container is engineered for safe, reliable and continuous breathing air supply during diving operations.
01. IMCA Compliant Design: Built following IMCA D018 and D023 guidelines for diving plant testing, certification and surface oriented air systems.
02. Sectioned Layout: The 20ft container is divided into a Machinery Part and a Supervision Cabin, while the 10ft container is used fully for machinery.
03. Fire Retardant Insulation: Internal walls fitted with Fire Retardant Polyurethane Insulation Sandwich Panel of about 50 mm thickness.
04. Dual Compressor Setup: LP compressor for continuous breathing air supply and HP compressor for charging the cylinder bank, both fitted within the same enclosure.
05. Backup Air Connections: The breathing air filter includes dedicated backup outlet connections for emergency situations.
06. Balanced Umbilical Storage: Stainless Steel umbilical frame on the container door provides equal balance and weight distribution.
07. Complete Electrical Setup: 220/440V electrical wiring with a dedicated Electrical Management Panel configured as per project requirement.
Applications of Machinery Container
Our Machinery Container supports commercial diving and offshore operations that need a self contained, mobile machinery room.
Offshore Diving Support Vessels: Provides a dedicated machinery room for breathing air supply aboard support vessels.
Commercial Air Diving Operations: Supplies continuous low pressure and high pressure breathing air for surface supplied diving panels.
Recompression and Decompression Support: The breathing air cylinder quad and reservoir tank supply air to recompression chambers when needed.
Offshore Oil and Gas Projects: Used on platforms and support vessels for inspection and maintenance diving work.
Marine Construction and Salvage: Provides a portable machinery package for construction and salvage diving projects.
Underwater Tool Operation: The hydraulic power unit supplies hydraulic power to underwater tools and actuators used during subsea work.
Technical Specifications of Machinery Container
Our Machinery Container is built around an LP and HP breathing air compressor set, a breathing air filter, a breathing air cylinder quad, a pressure reservoir tank and a hydraulic power unit, all designed to IMCA standards. The LP Breathing Air Compressor (Ingersoll Rand 15T and 15TNLX) delivers 14 Bar outlet pressure and 37.4 cfm free air with a 15 HP motor. The HP Breathing Air Compressor (Bauer Mariner Series) charges cylinders at 320 lpm up to 420 Bar. The Breathing Air Cylinder Quad holds 18 cylinders (9 plus 9) rated at 200 Bar x 50 litres each, and the Hydraulic Power Unit delivers 42 LPM at 280 Bar with a 30 HP, 415V electric motor.
| Component | Specification |
|---|---|
| Design Standard | Built to IMCA Standards |
| LP Breathing Air Compressor | Ingersoll Rand 15T / 15TNLX |
| LP Compressor Output | 14 Bar outlet pressure, 37.4 CFM free air, 15 HP motor |
| HP Breathing Air Compressor | Bauer Mariner Series |
| HP Compressor Capacity | 320 LPM charging capacity up to 420 Bar |
| Breathing Air Filter | Integrated breathing air filtration system |
| Breathing Air Cylinder Quad | 18 cylinders (9 + 9), 200 Bar × 50 Litres each |
| Pressure Reservoir Tank | Integrated with breathing air system |
| Hydraulic Power Unit | 42 LPM @ 280 Bar |
| HPU Motor | 30 HP, 415V Electric Motor |
Certifications and Standards for Machinery Container Manufacturer
Our Machinery Container is designed and manufactured to meet internationally recognized commercial diving standards. This includes IMCA D018 for the examination, testing and certification of diving plant and systems, and IMCA D023 for the design of surface oriented air surface systems. The container itself is built on a Standard ISO Shipping Container platform, CSC and TIR approved.
IMCA D018
Certified
IMCA D023
Certified
CSC
Approved
TIR
Approved
Why Choose JK Subsea Engineering as Your Machinery Container Manufacturer
When it comes to selecting a Machinery Container manufacturer, diving contractors need a partner who understands that continuous, reliable breathing air supply is not optional, it is the backbone of every safe diving operation. JK Subsea Engineering Pvt. Ltd. builds every Machinery Container with that principle at the core.
Experienced Manufacturer: A trusted Machinery Container manufacturer with proven engineering expertise in diving support systems.
IMCA Compliant Design: Built to IMCA D018 and D023 guidelines for diving plant and surface oriented air systems.
Two Container Formats: Available in 20ft and 10ft ISO Shipping Container sizes, including Model No. JK1MC for the compact 10ft version.
Complete Air System: LP and HP breathing air compressors, filter, cylinder quad and reservoir tank supplied as one integrated package.
Hydraulic Power Included: Electric Hydraulic Power Unit with safety package for underwater tool operation.
Durable Build: Fire Retardant Polyurethane Insulation Sandwich Panel walls and a Stainless Steel umbilical frame for long service life.
Strong After Sales Support: Ongoing technical support for offshore and subsea clients.
