Underwater Camera

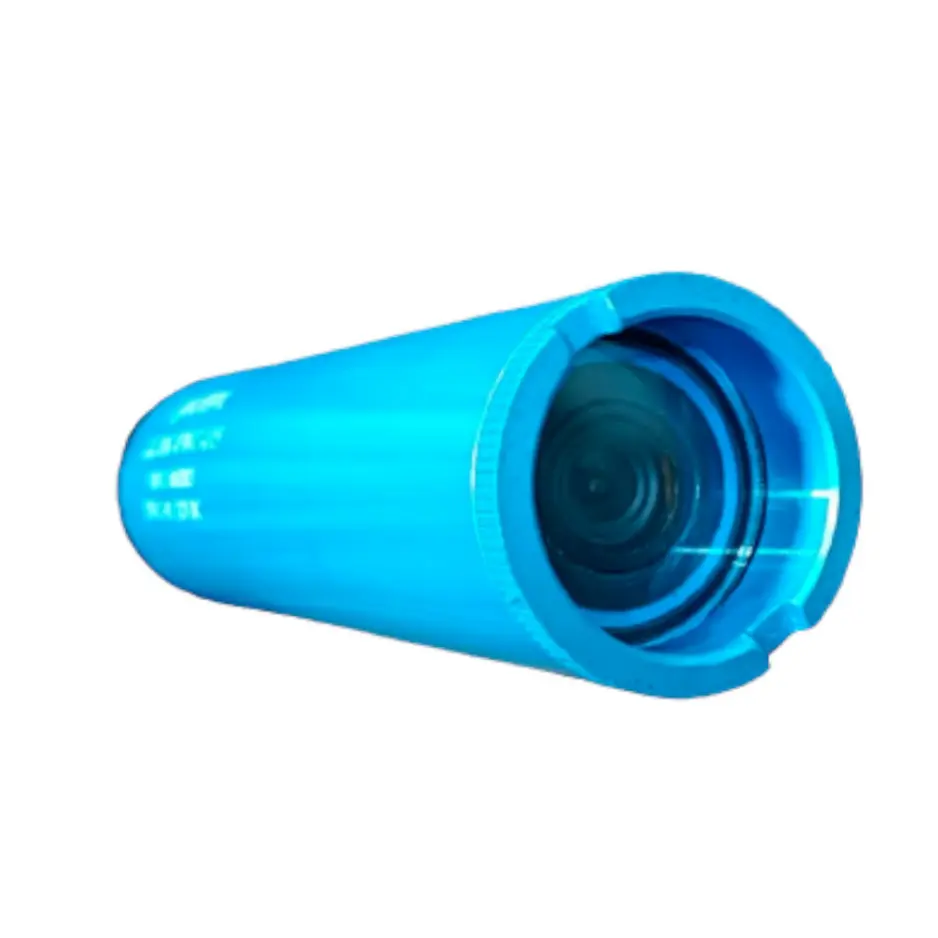

The JKSEPL Underwater Camera, Model No. JK-136, is designed for reliable underwater monitoring and inspection in demanding marine and subsea environments. Engineered for stable performance and clear video output, the camera delivers dependable image quality even in low-light underwater conditions. Its durable and compact design makes it suitable for commercial diving, offshore operations, underwater surveillance, and inspection applications where consistent visibility and operational reliability are essential.
Technical Specification for Underwater Camera
| Specification | Details |
|---|---|
| Image Device | 1/4″ JK Super CCD |
| Product Support | AWB, AGC, and AES |
| Picture Elements | NTSC: 510×492, PAL: 500×582 |
| Resolution | 330 TVL |
| Minimum Illumination | 0.05 Lux / F2.0 |
| S/N Ratio | More than 48 dB |
| Gamma | 0.45 |
| Iris Control | Fixed |
| Lens Furnished | Board Lens 3.6mm /F2.0 (Optional: f 6.0/12mm) |
| Sync. Function | Internal |
| Video Output | 1 Vp-p / 75 ohms, BNC Connector |
| Power Supply / Signal | A. Video Wire, B. -ve, C. +12 VDC |
| Power Consumption | 1.44W / 120 mA |
| Operating Temperature | -10°C to 50°C |
