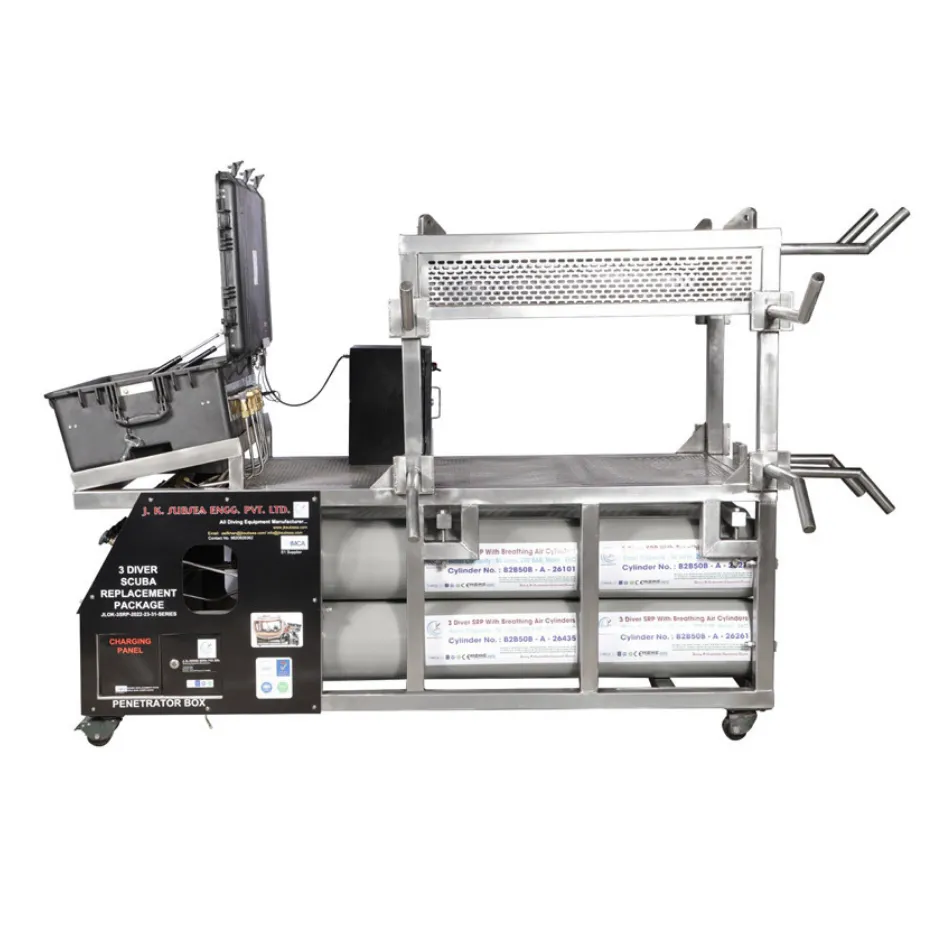

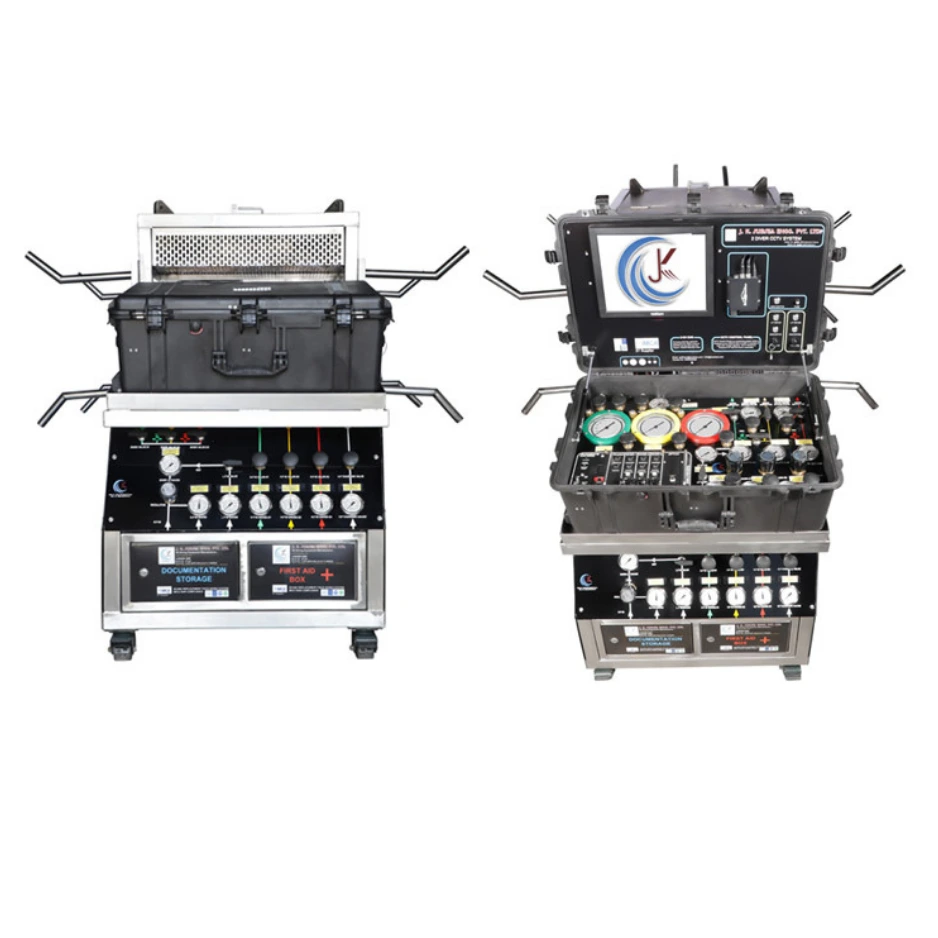

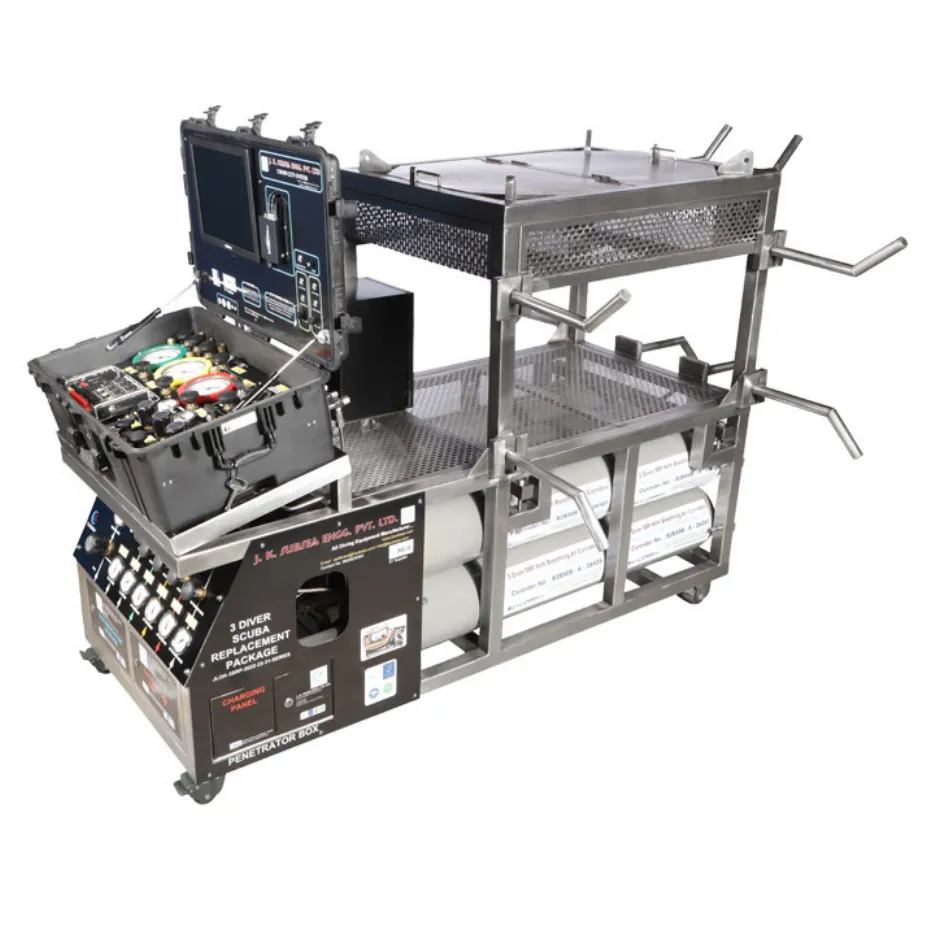

Diver Scuba Replacement Package

JKSEPL makes a 3-Diver Scuba Replacement Package majorly known as 3-Diver SRP with 6- Air Breathing Cylinder 50 ltrs. Cylinder 2- cylinders for each Diver. This 3-diver Portable SRP, manufactured with Stainless Steel (316L – Grade) with 4 Certified Lifting Lug.

Panel comprises of the following:

Send Inquiry

Data Sheet

Design Standards Compliant with IMCA Guidelines

D018

Code of practice for the initial and periodic examination, testing, and certification of diving plant and systems.

D040

Design for Mobile/ Portable Surface Oriented (Mix Gas /Air) surface system

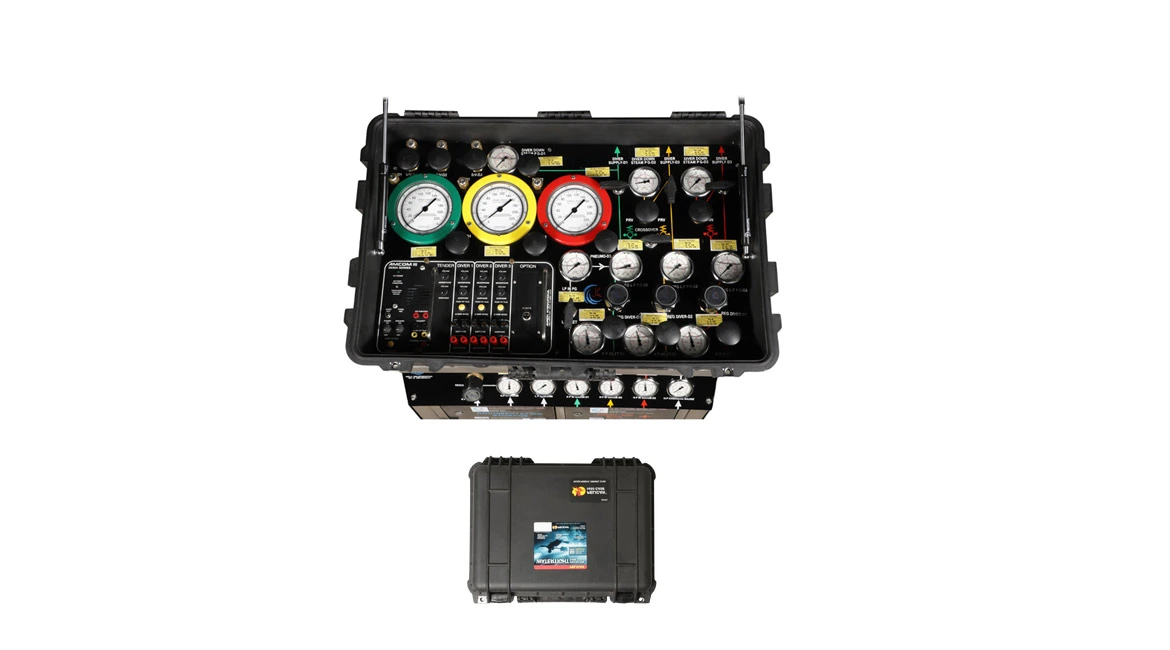

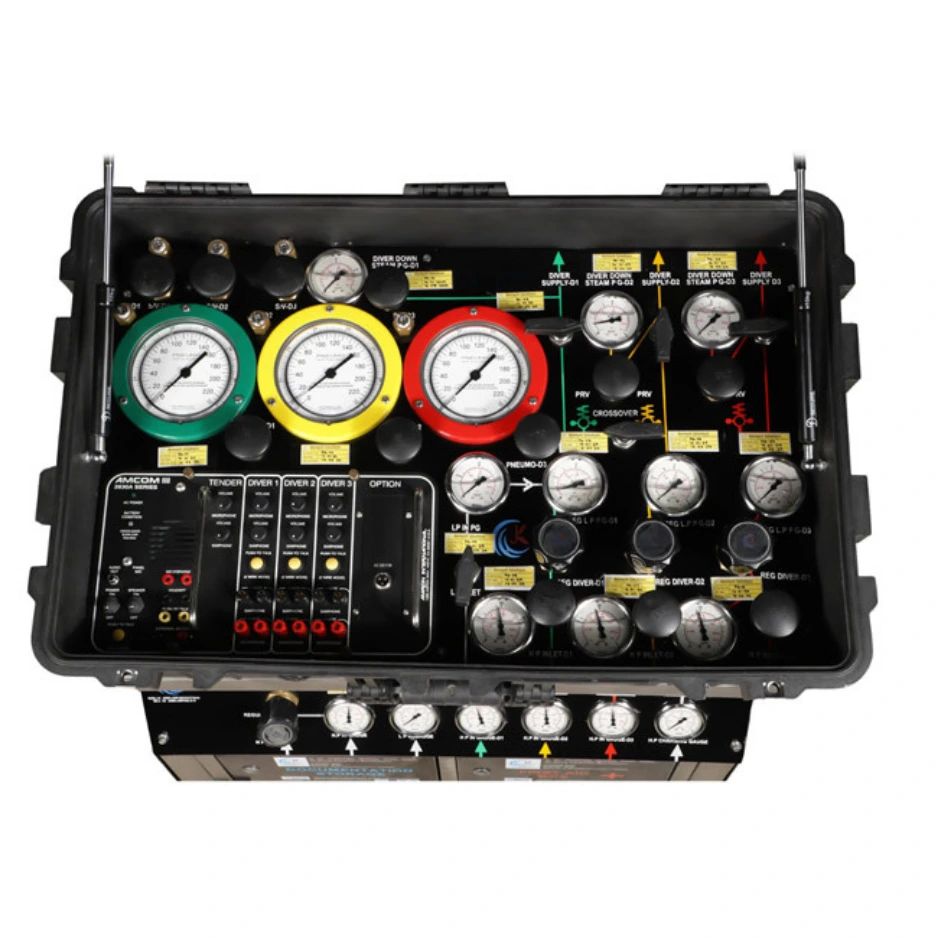

Portable Air Panel

The Portable Air Panel is a compact 3-diver control system housed in a durable Pelican Case. It includes high- and low-pressure supply lines with gauges and valves, a Tescom regulator, O₂ gas analyzer, pneumo depth gauge, Amron communication system, and integrated diver monitoring for safe diving operations.

Component / Feature	Description
Panel Configuration	Portable Air Panel for 3 Divers
Enclosure Type	Heavy-Duty Pelican Case
High-Pressure Line	Individual HP Line with Gauge & Supply Valve
Low-Pressure Line	LP Line with Gauge & Supply Valve
Air Regulator	Tescom Make High-Pressure Regulator
Depth Monitoring	Pneumo Depth Gauge with Supply Valve
Gas Monitoring	O₂ Gas Analyzer with Flow Meter
Communication System	3-Diver Amron Radio System
Monitoring System	Integrated Diver Movement Monitoring

Note: These Panel can be configure as per customer requirement

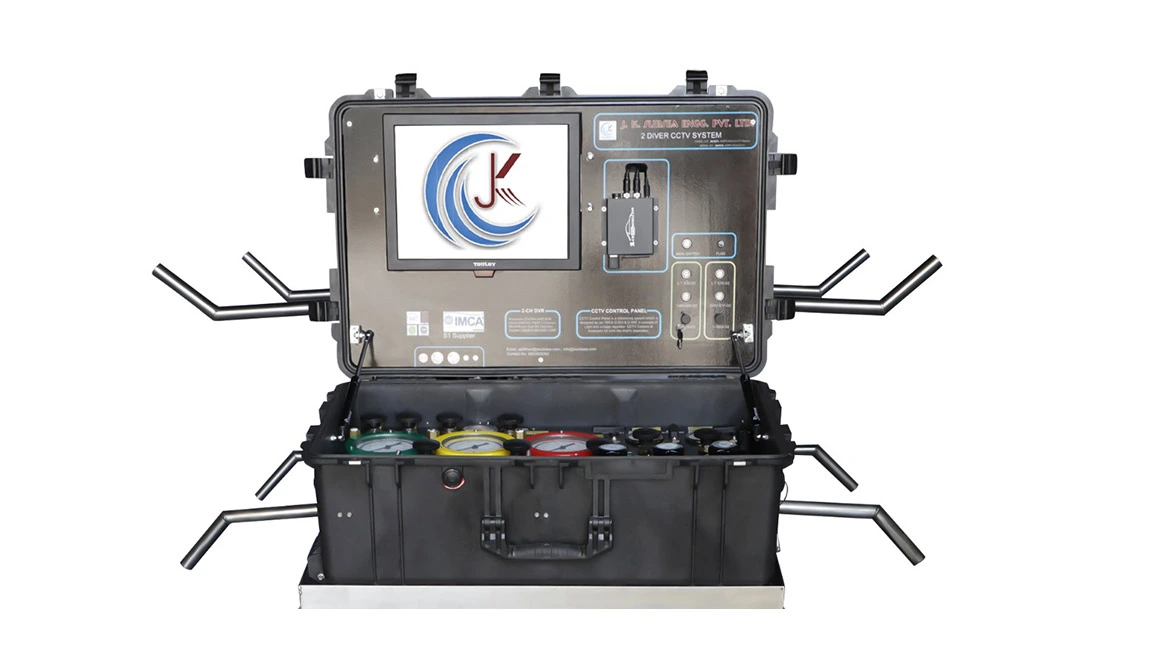

CCTV System

The Diver CCTV System enables real-time monitoring and communication during diving operations. It features combined storage for Diver 1 & 2, separate storage for Diver 3, a mobile DVR with dual 128 GB SD card slots, integrated Amron Diver Radio communication, and easy data extraction for operational convenience.

Component / Feature	Description
CCTV System	Individual CCTV Monitoring for Each Diver
Storage Configuration	Combined Storage for Diver 1 & 2
Separate Storage	Dedicated Storage for Diver 3
Mobile DVR	Dual SD Card Slots with 128 GB Capacity
Communication System	Integrated Amron Diver Radio System
2 Diver System	Equipped with 2 Diver Radio
3 Diver System	Equipped with 3 Diver Radio
Data Extraction	Easy & Convenient Data Retrieval

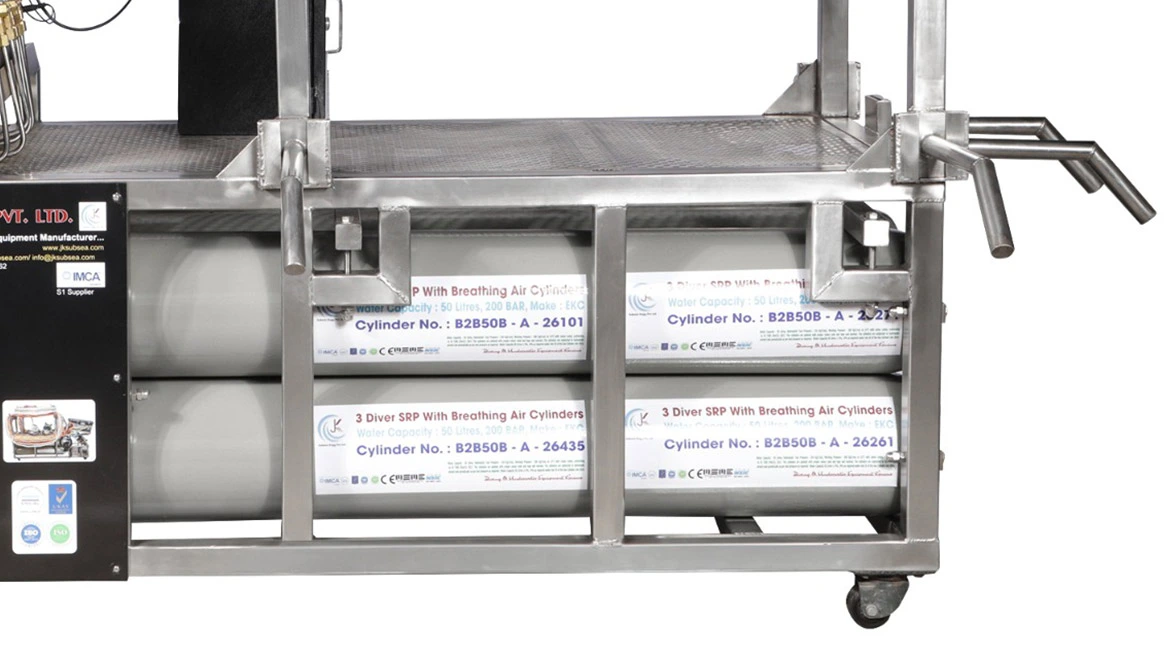

Diving Breathing Air Cylinder

The cylinder is designed for high-pressure industrial and diving applications, offering a 50-liter water capacity with a working pressure of 204 kgf/cm². Manufactured with hardened, quenched, and tempered treatment, it is PESO approved and tested for superior strength, durability, and safety standards.

Specification	Details
Water Capacity	50 Liters
Working Pressure	204 kgf/cm²
Hydrostatic Test Pressure	340 kgf/cm²
Nominal Length	1450 mm
Outside Diameter	232 mm
Cylinder Weight (Empty)	54 kgs
Bend Test	182° Without Cracking
Yield Pressure	500 kgf/cm²
Burst Test	560 kgf/cm²
Heat Treatment	Hardened, Quenched & Tempered
Painting Standard	As per Gas Cylinder Rule 2046, Govt. of India
Approval	PESO Approved

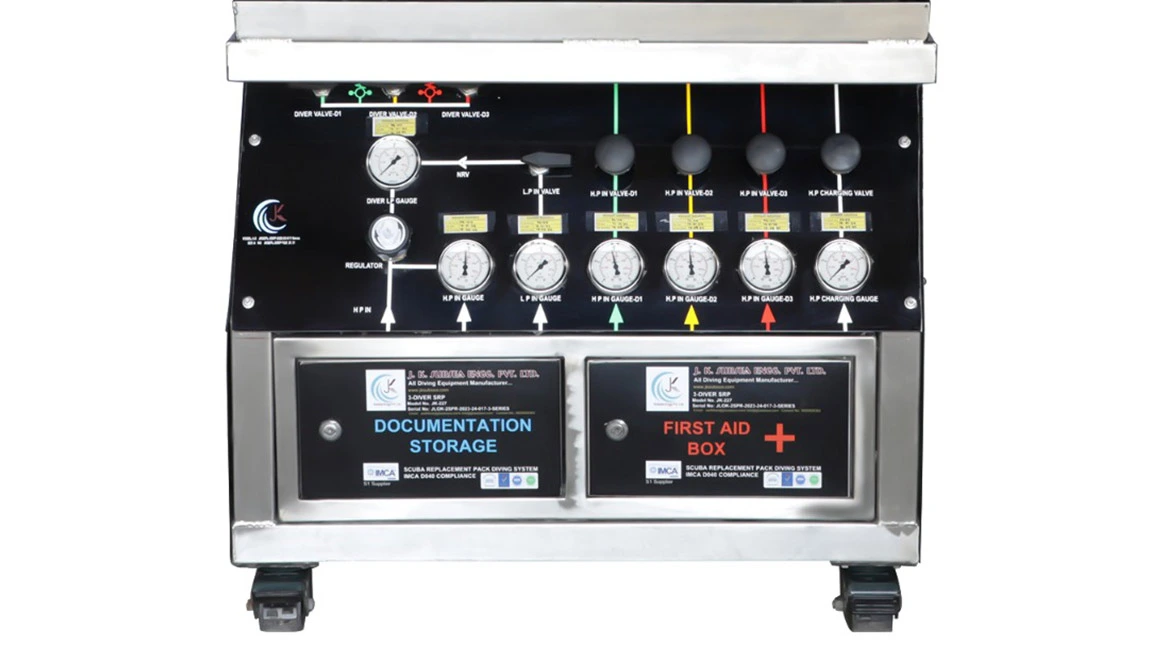

Emergency 3 Diver Air Panel

The 3 Diver Scuba Replacement Package includes a panel-mounted 3 Diver Air Panel designed for emergency operations. The front-mounted gas distribution panel features high- and low-pressure lines with gauges, supply valves, and a high-pressure regulator, while also enabling efficient charging of breathing air cylinders.

Component / Feature	Description
Air Panel Configuration	Panel Mount 3 Diver Air Panel
Application	Emergency Backup Operations
Gas Distribution Panel	Installed on Front Side of the Frame
High-Pressure Line	Equipped with Supply Valve & Gauge
Low-Pressure Line	Equipped with Supply Valve & Gauge
Pressure Regulator	High-Pressure Air Regulator
Cylinder Charging	Supports Breathing Air Cylinder Charging

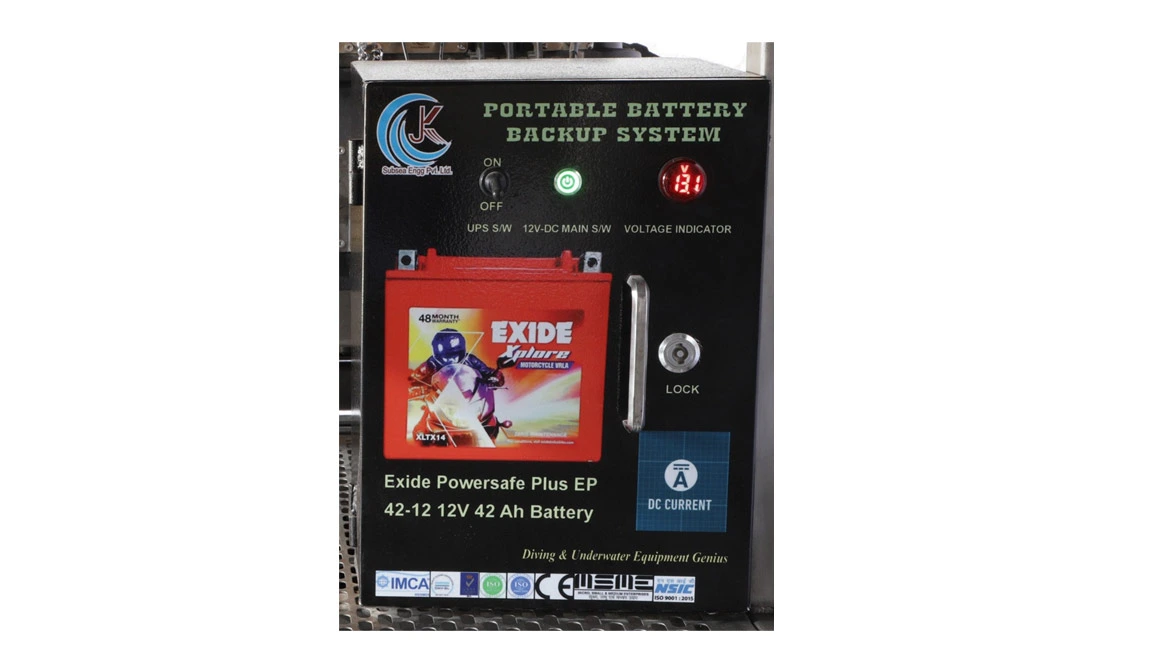

Emergency Backup System

The portable backup power system ensures uninterrupted power supply for operational equipment during field use. It is equipped with an Exide Powersafe Plus EP dry battery, transferable data storage, hard disk support, and provides up to 8 hours of battery backup.

Specification	Details
System Type	Portable Backup Power System
Battery Brand	Exide Dry Battery
Battery Model	Exide Powersafe Plus EP 42-12
Battery Rating	12V, 42 Ah
Storage Support	Hard Disk Compatible
Data Transfer	Easy Transferable Data Access
Battery Backup	Up to 8 Hours
