PRESSURE REGULATORS

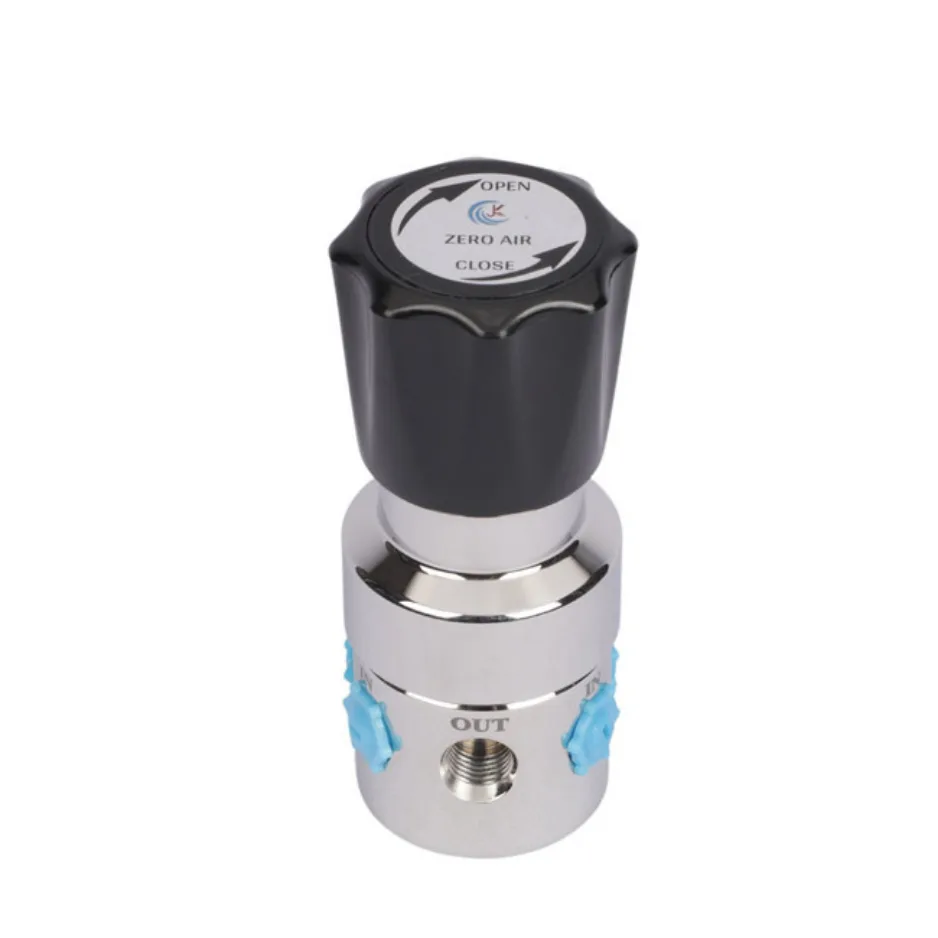

Mini High Flow Regulator

The Mini High Flow Regulator by JKSEPL is a compact, high-performance pressure regulator designed for applications requiring precise pressure control and higher flow rates. Manufactured using premium stainless steel, it offers excellent durability, corrosion resistance, and reliable operation in industrial, laboratory, and specialty gas systems.

  • Compact High-Flow Design
  • Accurate Pressure Regulation
  • Stainless Steel Construction
  • Reliable Corrosion-Resistant Performance
Send Inquiry
Data Sheet

Technical Specification for Mini High Flow Regulator

Equipment Specification
Product Type Regulator (Mini High Flow Regulator)
Material Stainless Steel & Brass
Grade SS 316 / Grade II
Maximum Inlet Pressure 15 Bar
Maximum Outlet Pressure 0–8 Bar
Locking Pressure Regulating
Flow Capacity Cv: 0.02–0.04
Temperature Range 5°C to 60°C
Maximum Operating Torque 30 in-lbs (3.4 Nm)
Port Configuration 2 & 3 Port as per IS Standard
Diaphragm Type Viton & Stainless Steel Diaphragm
Valve Seat Viton
Knob Type Hand Operated, Fine Control Threaded Type Bonnet
Standard IS 6901:2009

Features & Benefits

  • Compact in size
  • Designed to minimize contamination and provide accurate regulations of any corrosive, noncorrosive, or Toxic gas.

Applications

  • Laboratory and point of use gas system.
  • Sampling system, zero, span and calibration Analyzer gas

Model Number Reference – Mini High Flow Regulator

Material Gas Type Model No.
Stainless Steel Air JK-15-A
Oxygen JK-15-B
Nitrogen Dioxide JK-15-C
Helium JK-15-D
Mix Gas JK-15-E
Hydrogen JK-15-F
Carbon Dioxide JK-15-G
Nitrogen JK-15-H
Argon JK-15-I
Brass Air JK-16-A
Oxygen JK-16-B
Nitrogen Dioxide JK-16-C
Helium JK-16-D
Mix Gas JK-16-E
Hydrogen JK-16-F
Carbon Dioxide JK-16-G
Nitrogen JK-16-H
Argon JK-16-I
