PRESSURE REGULATORS

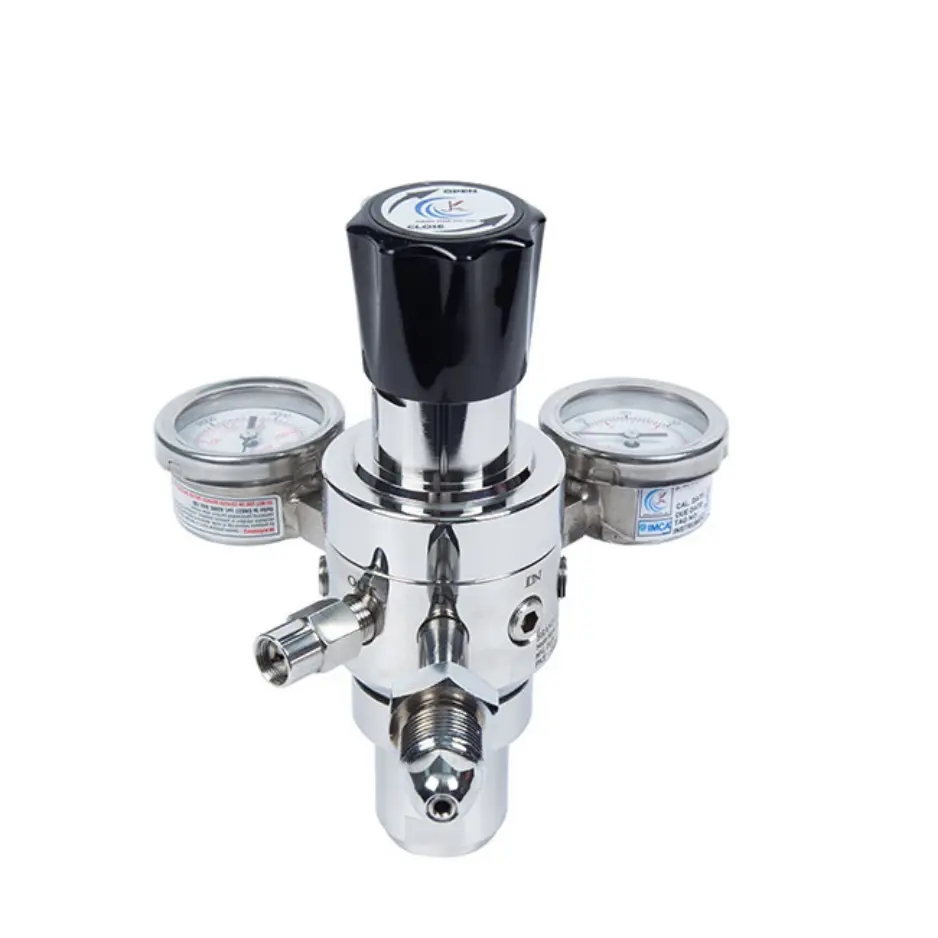

8-Port Body Pressure Regulator
The 8-Port Body Pressure Regulator by JKSEPL is designed for precise gas pressure control in laboratory, industrial, and specialty gas applications. Manufactured using premium SS 316 stainless steel with stainless steel diaphragm technology, it provides reliable performance, corrosion resistance, and accurate pressure regulation for demanding operating environments.
- 8-Port Stainless Steel Regulator Design
- Accurate Pressure Control & Monitoring
- SS 316 Corrosion-Resistant Construction
- EN837-1 Compliant Pressure Gauges
Technical Specification for 8-Port Body Pressure Regulator
| Equipment | Specification |
|---|---|
| Product Type | Regulator (8-Port Body Regulator) |
| Material | Stainless Steel |
| Grade | SS 316 |
| Maximum Inlet Pressure | 280 Bar |
| Maximum Outlet Pressure | 16 Bar |
| Locking Pressure | 12 Bar |
| Flow Capacity | Cv: 0.02 |
| Temperature Range | -30°C to 74°C |
| Maximum Operating Torque | 30 in-lbs (3.4 Nm) |
| Port Configuration | 8 Port as per IS Standard |
| Diaphragm Type | Stainless Steel Diaphragm |
| Valve Seat | PTFE |
| Knob Type | Hand Operated, Fine Control Threaded Type Bonnet |
| Standard | IS 6901:2009 |
Features & Benefits
- Compact in size
- Designed to minimize contamination and provide accurate regulations of any corrosive, noncorrosive, or Toxic gas.
Applications
- Laboratory and point of use gas system.
- Sampling system, zero, span and calibration Analyzer gas
8-Port Body Regulator Model Identification
| Gas Type | Model No. |
|---|---|
| Air | JK-12-A |
| Oxygen | JK-12-B |
| Nitrogen Dioxide | JK-12-C |
| Helium | JK-12-D |
| Mix Gas | JK-12-E |
| Hydrogen | JK-12-F |
| Carbon Dioxide | JK-12-G |
| Nitrogen | JK-12-H |
| Argon | JK-12-I |
